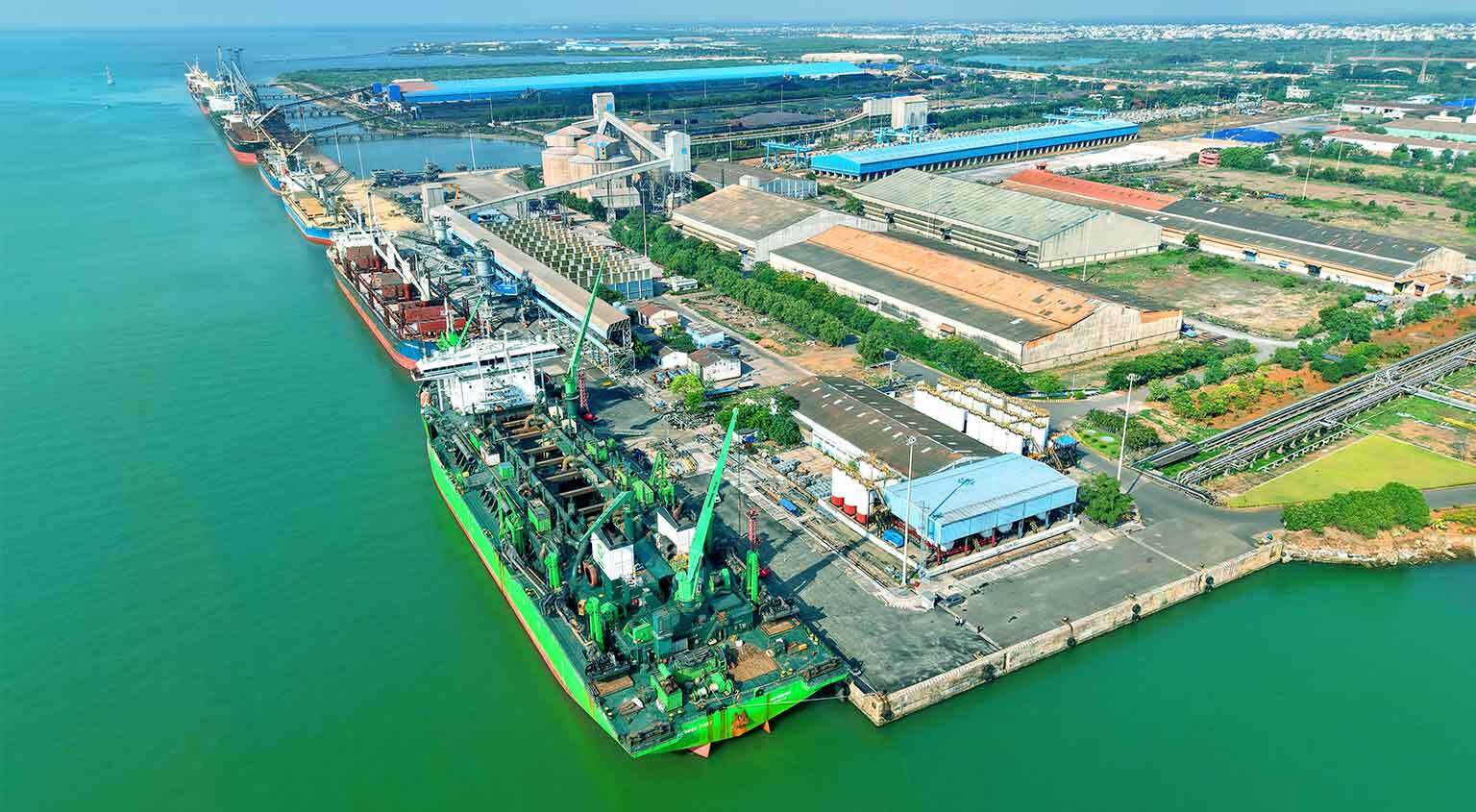

Main Jetty
Main Jetty has Seven berths & one OSV berth
Total length of quay (seven berths): 1910 mtrs
Total width of quay:
I) Berths 1 to 4 – 25mtrs,
II) Berths 5 & 6 – 30mtrs,
III) Berth 7 – 35mtrs,
Length of OSV berth: 90 mtrs
Width of OSV berth: 25 mtrs
Permissible vessel dimensions at Main Jetty:
Max LOA permissible: 295 mtrs
Max Beam permissible: 45 mtrs
Max permissible draught: -14.5 mtrs (on high tide)
Navigational Channel
Length: 12000 mtrs
Width: 225 mtrs
Depth: 15 mtrs
Turning Circle: 590 mtrs
Island Breakwater:1050 mtrs
Channel Buoys (Solar Powered): 23
Transit lights (Solar Powered): 2 nos

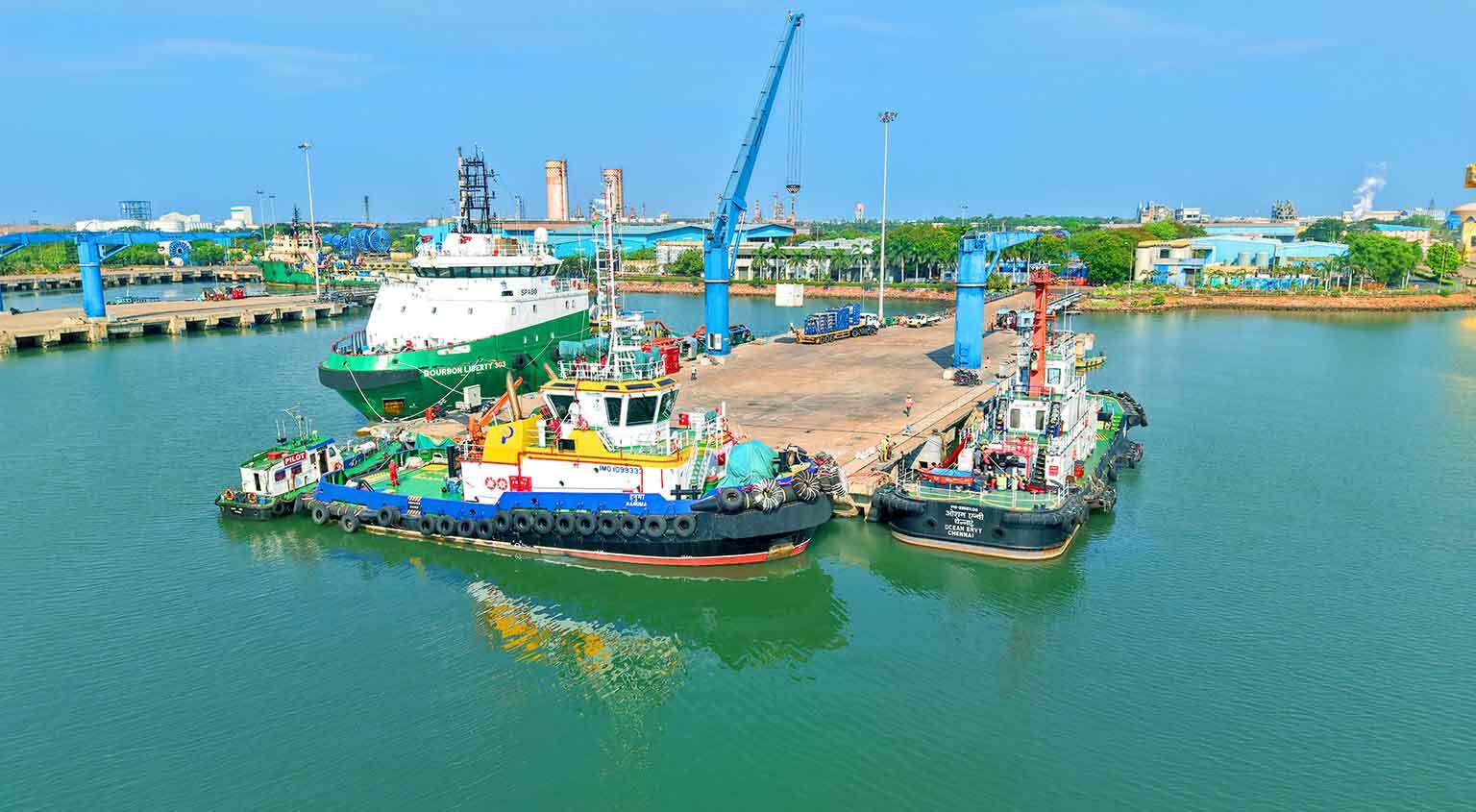

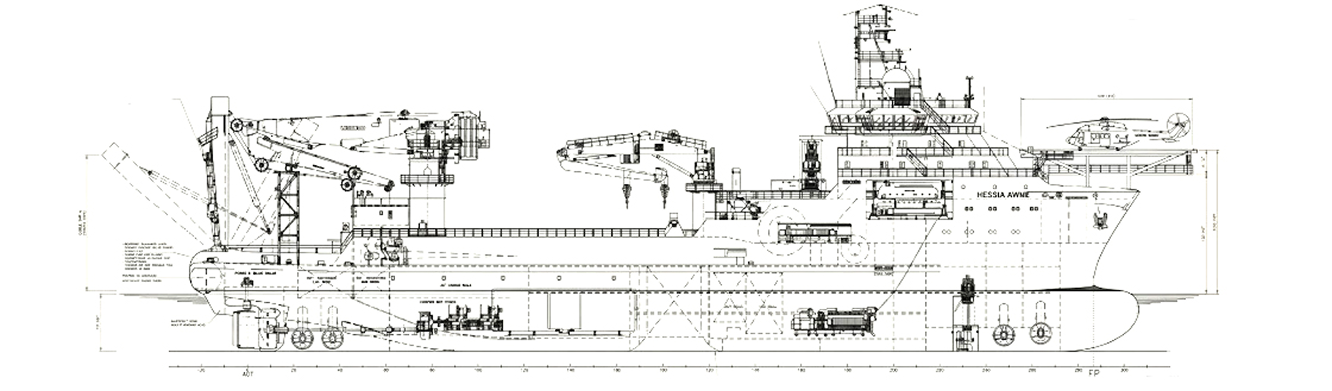

OSV Jetty
Two Finger Jetties: a) 4 x 90 mtrs
with berthing faces: b) 2 x 40 mtrs
Permissible dimensions:
LOA permissible: 90 mtrs
Beam permissible: 25 mtrs
Permissible draught: 8.5 mtrs
c) D-Wall = 1×90 Mtrs

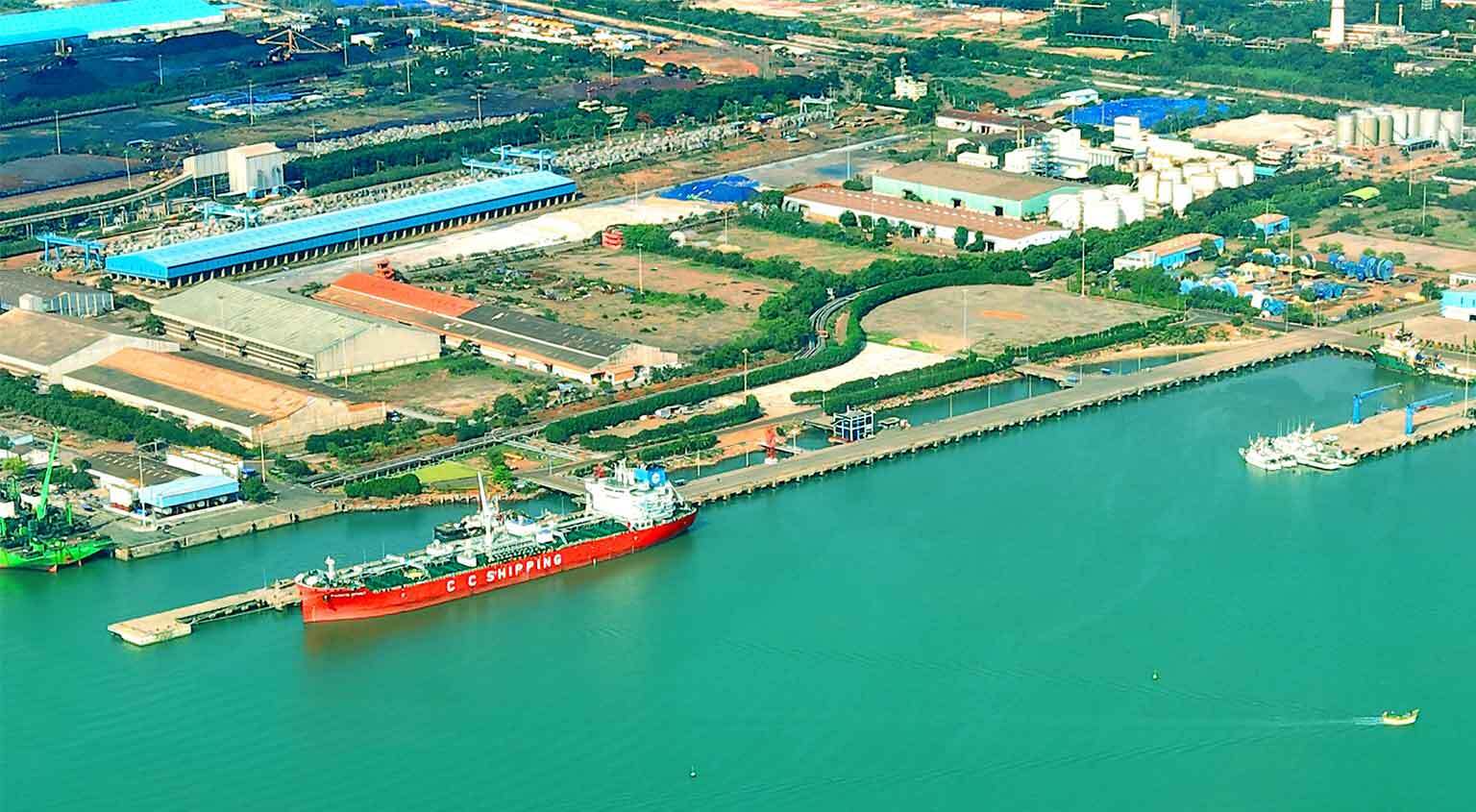

NRW Jetty
NRW 1, NRW 2, NRW 3, NRW (SOUTH)
Permissible dimensions:
NRW 1, NRW 2 = 2×210 Mtrs
NRW 3 = 1×200 Mtrs
LOA: 170 mtrs
Draft: 11 mtrs
NRW (SOUTH)
LOA: 180 mtrs
Draft: 10 mtrs

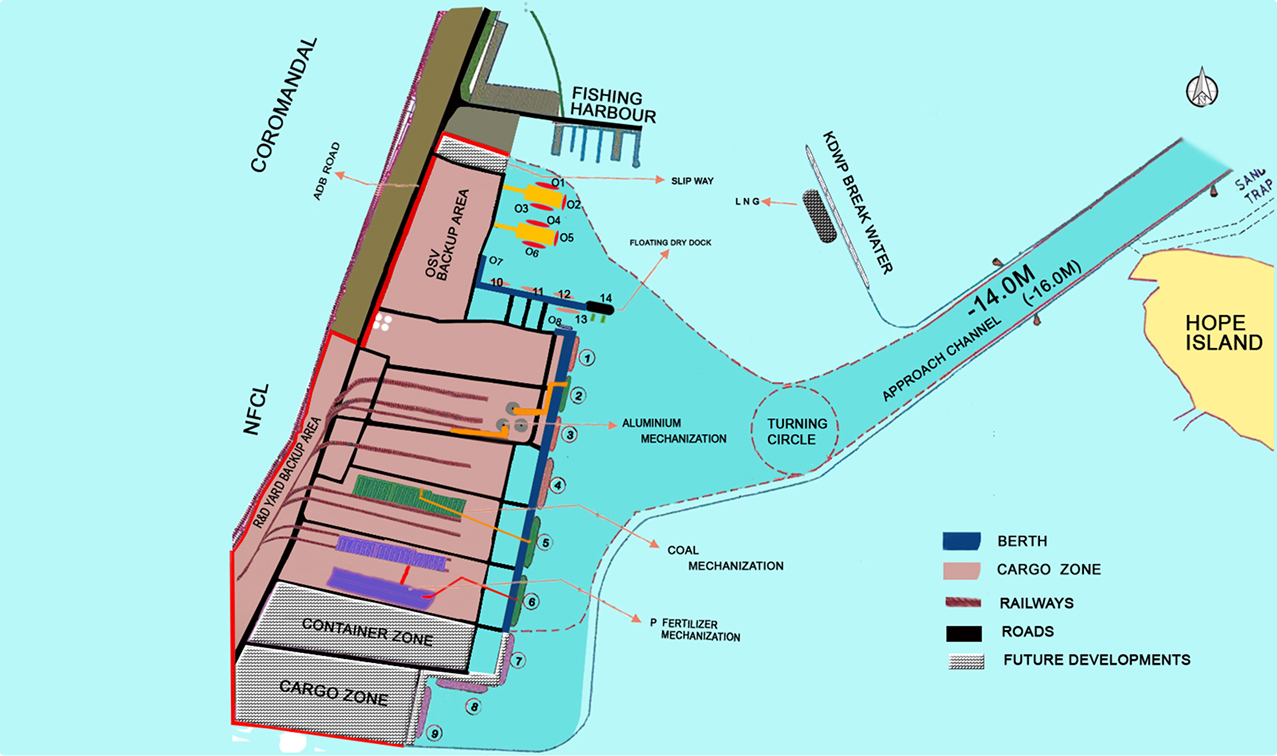

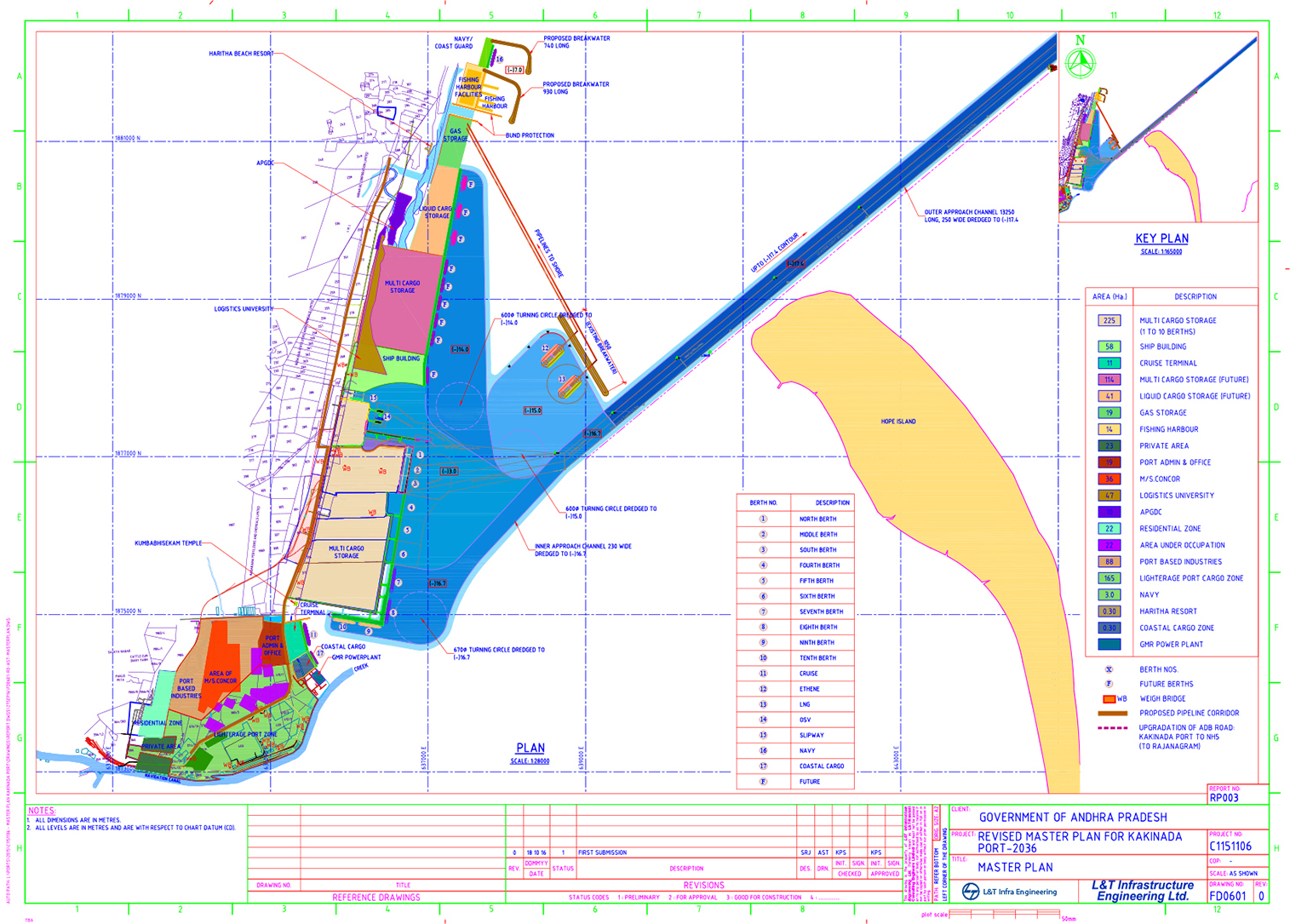

Port Layout Overview
